Pneumatic Piston Injection Pump & Metering System
Accurately measure, record & CONTROL additive levels with little to no effect from back pressure while filling tanks.
TCS Pnuematic Piston Injection Pump & Metering System
Single Additive Injection Pump & Meter System

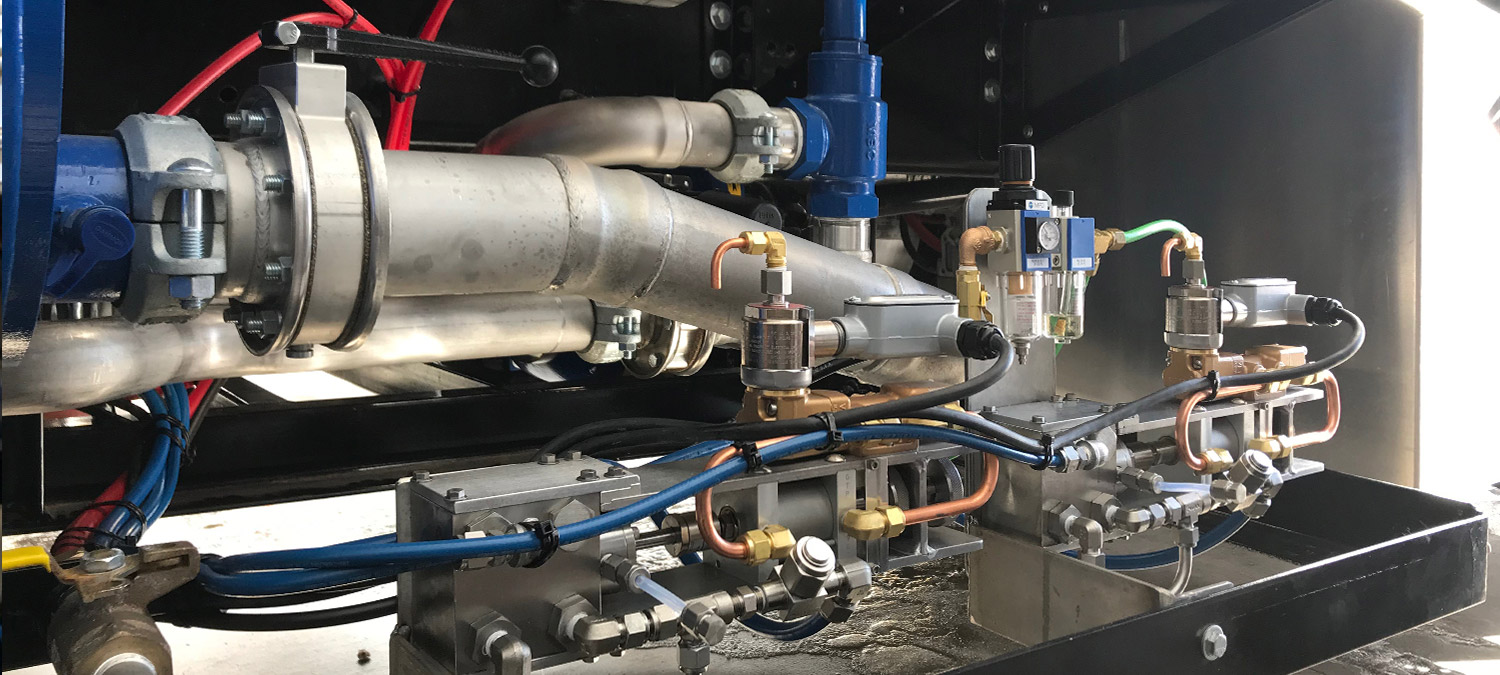

Dual Additive Injection Pump & Meter System
Air-Driven
The Gammon Technical Products (GTP) injection pumps are an excellent means to inject additive accurately with little to no effect from back pressure while filling tanks. The piston injection pumps can be operated and controlled by the TCS 3000 register without the assistance of a separate controller.
Automatic Self-Adjusting

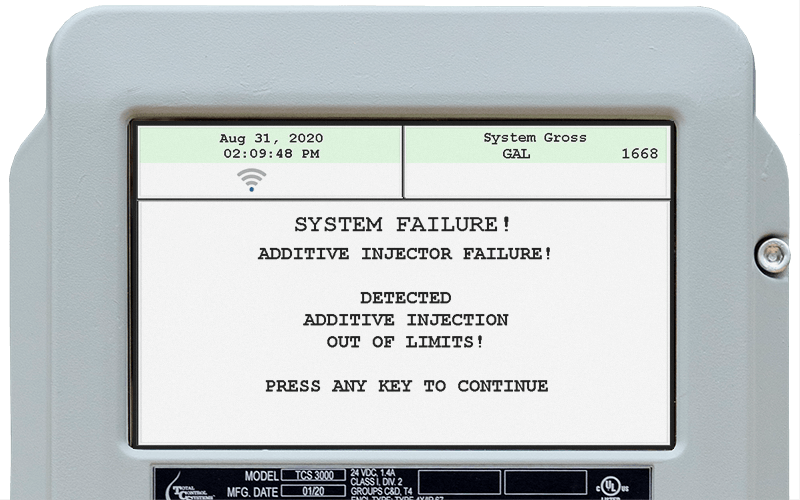

Set your target PPM concentration ratio, and the TCS 3000 register will control the injection pump to ensure you maintain an accurate additive blend throughout the entire delivery. If the ratio falls out of tolerance for some reason, the TCS 3000 will end the delivery and print the error on the delivery ticket along with the additive volume and PPM ratio.
Accurate
Measure additive with +/- 5 PPM accuracy* at rates up to 2750 mLPM (*on delivered volumes of 300 gallon capacities).
cUL Listed
ATEX Approved
Pneumatic
Single
Additive Injection Pump & Meter System
Additive Injection Pump & Meter System
- 12 or 24 Volt GTP Scorpion Piston Pump
- Filter-Regulator Lubricator (12V) or Filter Check Valve (24V)
- Flow Meter
- 3-Way Valve
- Back Pressure Orifice
- 1000 ML Test Beaker and Nozzle Injector
- FMK or Neoprene Seals
Dual
Additive Injection Pump & Meter System
Additive Injection Pump & Meter System
- 12 or 24 Volt GTP Scorpion Piston Pump
- Filter-Regulator Lubricator (12V) or Filter Check Valve (24V)
- Flow Meters
- Strainers
- Check Valves
- 3-Way Valves
- Back Pressure Orifices
- 1000 ML Test Beaker and Nozzle Injectors
- FMK or Neoprene Seals
Sample Flow Diagram
The TCS 3000 register will control a solenoid actuated pneumatic piston injection pump to maintain injection pump rate and concentration.
TCS 590908/16/30
8, 16, or 30 Gallon 304SST Tank Assembly with Sight Gauge and 3/8” Drain Valve
500-380SS2D1/2/3
3/8" NPT Oval Gear 0.3 GPM Meter with FMK, Neoprene, or PTFE Seals
TCS 590125
Flow Rate Indicator and Totalizer; Wall-Mounted IP65/NEMA4 ABS Enclosure; 10-30VDC Power
TCS 590902KT
Low Level 3/4” NPT SST Contact Switch with M12
connector and 6” cable - 16” Length Stem
TCS 590105
Single and Dual Suction/Anti-Siphon SST Tube Assembly with Vent and Drierite Tube; 3/8” NPT
TCS 590101
Suction/Anti-Siphon SST Tube Assembly with Vent and Drierite Tube; 3/4” Quick Disconnect
TCS 590109
Suction/Anti-Siphon SST Tube Assembly with Vent and Drierite Tube; 3/4” Quick Disconnect
TCS 590120
1000 mL Graduated Polypropylene Test Cylinder
TCS 590934
Lockable 2" Kamlok Cap with Neoprene Seal - 304 Stainless Steel or Polypropylene
TCS 590942
2" Kamlok F
304 Stainless Steel or Polypropylene
TCS 590946
2" Bulkhead Tank Fitting with Neoprene Seal
304 Stainless Steel or Polypropylene
©
